ROTATING EQUIPMENT SEGMENT PRODUCTS OFFERRED

TerraMAXTM SCA - IE2 Motors

• Frame Sizes: IEC®* 80 - IEC 355
• Power Rating: 0.37 kW to 375 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

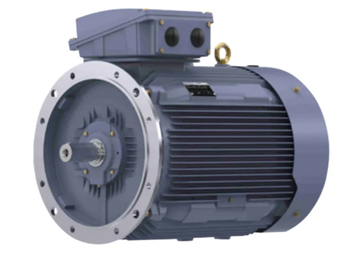

TerraMAX TCA - IE3 Motors

• Frame Sizes: IEC 80 - IEC 355
• Power Rating: 0.37 kW to 375 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

TerraMAX QCA - IE4 Motors

• Frame Sizes: IEC 80 - IEC 355
• Power Rating: 0.37 kW to 355 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 6
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

Challenger IE2 Motors

• Frame Sizes: IEC 80 - IEC 355
• Power Rating: 0.37 kW to 375 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class
• Special features available on demand: Brake, Force cooling, encoder mounting, Multi-speed, Type Ex ec, Higher pole 10/12, Intermittent duty

Enquiry

Flame Proof Motors IE1 / IE2

• Frame Sizes: IEC 80 - IEC 355
• Power Rating: 0.37 kW to 315 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B
• Gas Group – I , IIA & IIB for entire range and IIC for frame 80 to 160

Enquiry

Smoke Spill Motors IE2 / IE3

• Frame Sizes: IEC 80 - IEC 280
• Power Rating: 0.37 kW to 90 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class H
• Thermal capacity under abnormal condition: 400 / 300 / 250 degree centigrade for 2 hours

Enquiry

PTSC - I SPDP Squirrel Cage Motors

• Frame Sizes: IEC 160 - IEC 355
• Power Rating: 11 kW to 375 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2 to 8
• Protection: IP21, IP23 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

PTSC - I (Fire Fighting) SPDP Squirrel Cage Motors

• Frame Sizes: IEC 180 - IEC 250
• Power Rating: 30 kW to 110 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 2
• Protection: IP21, IP23 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

KD Crane Duty Motors (Lower Frame)

• Frame Sizes: IEC 80 - IEC 250
• Power Rating: 0.75 kW to 55 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 4 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F
• Meets efficiency requirement as per IS:12615-2018

Enquiry

KS Crane Duty Slipring Motors

• Frame Sizes: IEC 112 - IEC 560
• Power Rating: 2 kW to 450 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 6 to 10
• Protection: IP55 (IS 4691)
• Insulation Class: Class F with temperature rise limit to Class B

Enquiry

RW/CW SPDP Slipring Motors

• RW Frame Sizes: RW89 to RW 168
• CW Frame Sizes: IEC 450 TO IEC 710
• Power Rating: 90kW to 2000 kW
• Power Supply: AC 3 Phase 415V, 50 Hz
• Pole: 6 to 12
• Protection: IP21, IP23 (IS 4691)
• Insulation Class: Class F with temperature rise limited to class B

Enquiry

TerraMAX SCV - Crane Duty Motor

• Frame Sizes: IEC 80 - IEC 355
• Power Rating: 0.75 kW to 315 kW
• Power Supply: AC 3 Phase 415V, 50Hz
• Pole: 4 to 8
• Protection: IP55 (IS 4691)
• Insulation Class: Class F
• Meets efficiency requirement as per IS:12615-2018

Enquiry

MV Motors - CACA

• Frame: IEC®* 315 to IEC 710
• Power Rating: upto 5 MW
• Voltage: 3.3KV / 6.6KV / 11KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 14

Enquiry

MV Motors - TEFC

• Frame: IEC 280 to IEC 560
• Power Rating: upto 1.5 MW
• Voltage: 3.3KV / 6.6KV / 11KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 14

Enquiry

MV Motors - CACW

• Frame: IEC 315 to IEC 710
• Power Rating: upto 5 MW
• Voltage: 3.3KV / 6.6KV / 11KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 14

Enquiry

MV Motors - Flame Proof (Ex d)

• Frame: IEC 280 to IEC 450
• Power Rating: upto 750 kW
• Voltage: 3.3KV / 6.6KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 8

Enquiry

MV Motors - TETV

• Frame: IEC 400 TO IEC 1000
• Power Rating: upto 4 MW
• Voltage: 3.3KV / 6.6KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 14

Enquiry

MV Motors - CACA SLIP RING

• Frame: IEC 315 to IEC 710
• Power Rating: upto 3 MW
• Voltage: 3.3KV / 6.6KV / 11KV
• Frequency: 50Hz +- 5%
• Pole: 4 to 8

Enquiry

MV Motors - SPDP

• Frame: IEC 315 to IEC 710
• Power Rating: upto 5 MW
• Voltage: 3.3KV / 6.6KV / 11KV
• Frequency: 50Hz +- 5%
• Pole: 2 to 14

Enquiry

Propeller Fan

• Air Flow: 1200 m³/hr to 28000 m³/hr
• Sweep Dia: 12” to 36”
• Voltage: 415V+-10%
• Frequency: 50 Hz±5%
• Static Pressure: Free Flow

Enquiry

Axial Flow Fan

• Air Flow: 1000 m³/hr to 300000 m³/hr
• Sweep Dia: 12” to 75”
• Voltage:415V+-10%
• Frequency: 50 Hz±5%
• Static Pressure: Free Flow to 135 mm wg

Enquiry

Centrifugal Fan

• Air flow: 1000 m³/hr to 250000 m³/hr
• Impeller dia: 250mm to 2000mm
• Voltage: 415V+-10%
• Frequency: 50 Hz±5%
• Static pressure: 7.5 mm wg to 900 mm wg

Enquiry

Mancooler Fan

• Sweep range: 480 mm to 1200 mm
• Air flow: 22000 m3/hr to 74500 m3/hr
• Static pressure: Free Air Delivery (F.A.D.)

Enquiry

Flameproof Electric Motors

E3.../E4A... Series - IE3/IE4 Gas & Dust Version

Enquiry

Flameproof Electric Motors With Brake

E3.../E4D Series - IE3/IE4 Gas & Dust Version

Enquiry

Non Sparking Electric Motors

TCN Series - IE3/IE4 Gas & Dust Version

Enquiry

Ex-e increased safety stainless steel terminal box

Enquiry

Brake enclosure

Enquiry

Oversized terminal box

Enquiry

Totally enclosed fan ventilated

Enquiry

• Energy Audit Of Motors For Power Saving
• AES Energy Audit Motors
• Repairs Of Motors From Authorized Service Centers

Enquiry
